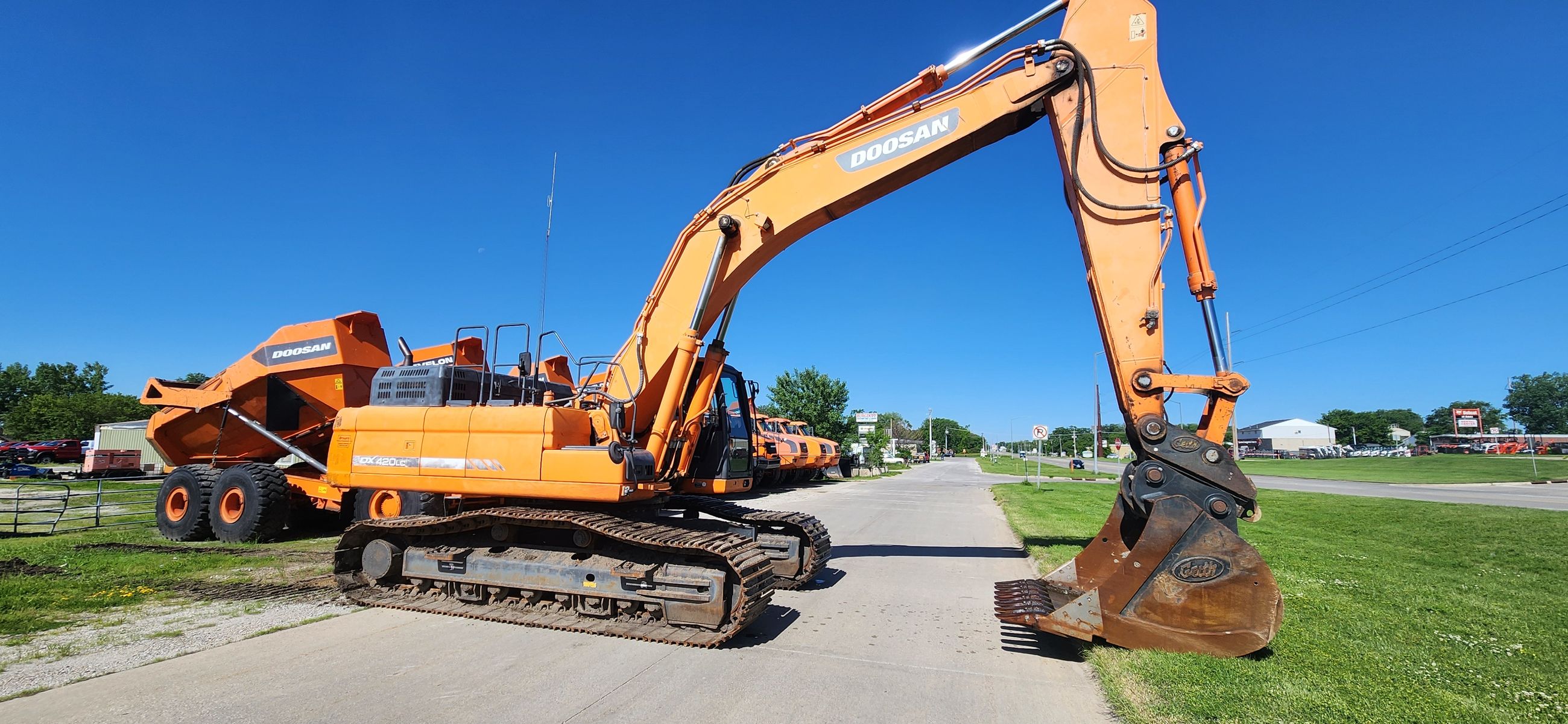

2014 dOOSAN DX420LC-3

  • Powerful Engine: Equipped with a Doosan DL08K engine
  • Advanced Hydraulics: Features a load-sensing hydraulic system
  • Easy to Service
  • Spacious Cabin: ROPS certified, air-conditioned cabin
  • Exceptional Digging Force: Provides a bucket digging force of 28,000 kgf
  • Enhanced Safety: Comes with an advanced monitoring system and a rear-view camera
gET A QUOTE

General Information

  • Manufacturer: Doosan
  • Model: DX420LC-3
  • Year: 2014
  • Type: Crawler Excavator

Engine

  • Engine Make: Doosan
  • Engine Model: DL08K
  • Gross Power: 362 hp (270 kW)
  • Engine Displacement: 7.64 L

Operational

  • Operating Weight: 42,000 kg (92,594 lbs)
  • Fuel Capacity: 620 liters (164 gallons)
  • Hydraulic System Pressure: 34.3 MPa

Dimensions

  • Overall Length: 11,480 mm (451.2 in)
  • Overall Width: 3,290 mm (129.5 in)
  • Overall Height: 3,435 mm (135.2 in)
  • Track Length: 5,300 mm (208.7 in)
  • Track Width: 600 mm (23.6 in)
  • Ground Clearance: 550 mm (21.7 in)

Performance

  • Max Digging Depth: 7,740 mm (304.7 in)
  • Max Reach at Ground Level: 12,100 mm (476.4 in)
  • Max Dumping Height: 7,640 mm (300.8 in)
  • Bucket Digging Force: 28,000 kgf
  • Arm Digging Force: 24,000 kgf

Features

  • Cabin: ROPS certified, air-conditioned, ergonomic controls
  • Hydraulics: Load-sensing hydraulic system, multiple work modes
  • Safety: Advanced monitoring system, rear-view camera
  • Technology: On-board diagnostics, telematics

Additional Information

The Doosan DX420LC-3 is designed for heavy-duty operations, offering exceptional digging force and advanced hydraulics for increased productivity. Its robust build and advanced features ensure reliability and efficiency in various applications, including construction, mining, and earthmoving projects.
